Description
Reactor is a inductive load that eliminates any undesired capacitor output produced on parasite elements of the distribution system (e.g. Metal-clad HV cables, long open-circuit lines etc.). The reactors comply with the re-quirements of ČSN EN 60 289 and ČSN EN 61 558-2-20 and are intended for 3 × 400 V, 50 Hz networks. The reactors are manufactured with IP00 protection. The reactors are equipped with self resettable thermal switch 250 V / 2,5 A that can be connected to the contactor control circuit. Winding is made by Aluminium conductor. Terminals by Al-Cu cable lugs. Reactors can be designed individually to suit different voltage, with different ca-pacitor powers or other specified parameters.
| Type | Power Rating | Rated Current | Inductance | Poer Losses (warm) | Temperature Rise | |
|---|---|---|---|---|---|---|
| Q | In | L | ΔPmax | ΔT | ||
| [kVAr] | [A] | [mH] | [W] | [%] | [°C] | |
| TTA 36078-0037 | 12,5 | 18,0 | 40,70 | 390 | 2,3 | 70 |
| TTA 37070-0126 | 15 | 21,7 | 34,00 | 360 | 2,4 | 65 |
| TTA 37070-0127 | 20 | 28,9 | 25,50 | 440 | 2,2 | 75 |
| TTA 370133-0033 | 25 | 36,1 | 20,40 | 460 | 1,8 | 75 |
| TTA 370133-0035 | 30 | 43,3 | 17,00 | 540 | 1,8 | 80 |
| TTA 380140-0162 | 40 | 57,7 | 12,70 | 730 | 1,8 | 85 |
| TTA 310080-0050 | 50 | 72,2 | 10,20 | 900 | 1,8 | 85 |
| TTA 310080-0055 | 60 | 86,6 | 8,49 | 1030 | 1,7 | 85 |
| TTA 3100120-0048 | 80 | 115,5 | 6,37 | 1000 | 1,3 | 85 |
| TTA 3100130-0008 | 100 | 144,3 | 5,10 | 1300 | 1,3 | 85 |

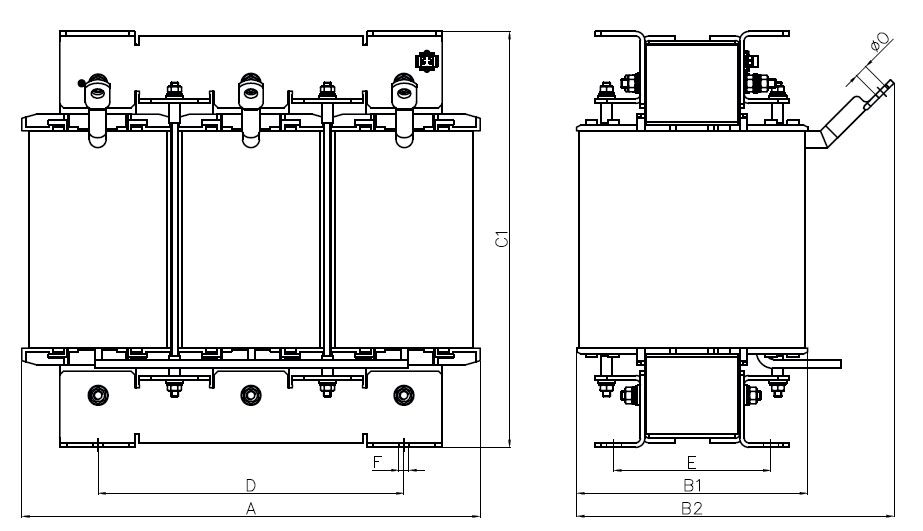

| Type | Dimension [mm] |
Cable Lugs Al-Cu ø [mm] |
Weight [kg] |
||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B1 | B2 | C1 | D | E | F | |||
| TTA 36078-0037 | 360 | 168 | 230 | 330 | 264 | 142 | 11 × 18 | 8,5 | 50 |
| TTA 37070-0126 | 417 | 175 | 240 | 380 | 280 | 132 | 11 × 18 | 8,5 | 65 |
| TTA 37070-0127 | 417 | 175 | 240 | 380 | 280 | 132 | 11 × 18 | 8,5 | 75 |
| TTA 370133-0033 | 417 | 235 | 300 | 380 | 280 | 192 | 11 × 18 | 10,5 | 115 |
| TTA 370133-0035 | 417 | 235 | 300 | 380 | 280 | 192 | 11 × 18 | 10,5 | 120 |
| TTA 380140-0162 | 477 | 260 | 340 | 450 | 356 | 214 | 13 × 20 | 10,5 | 155 |
| TTA 310080-0050 | 600 | 265 | 375 | 550 | 400 | 165 | 13 × 20 | 13,0 | 170 |
| TTA 310080-0055 | 600 | 265 | 375 | 550 | 400 | 165 | 13 × 20 | 13,0 | 175 |
| TTA 3100120-0048 | 600 | 305 | 415 | 550 | 400 | 205 | 13 × 20 | 13,0 | 220 |
| TTA 3100130-0008 | 600 | 315 | 425 | 650 | 400 | 215 | 13 × 20 | 13,0 | 270 |
